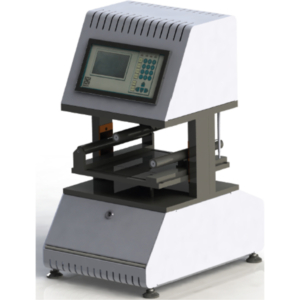

LABORATORY FLEXIMETER CC96-S-2019

Table instrument, in powder-coated steel, with precision electronics for the determination of the bending breaking load (max load) on ceramic or similar specimens Semi-automatic, it is equipped with a steel surtace on which two oscillating supports (knives) are positioned, manually and individually moved and adjusted which in turn receive the sample to be tested. The adjustment is made with the aid of millimeter reference indices. The steel top lifts automatically, with electro-mechanical operation, at a speed known as approaching This approach speed is automatically switched by the control unit into working speed as required by the regulations. The knife placed in the upper part presses on the specimen until it breaks. The unit reads the transmitted data, stores the value of the data at the time of the break of the sample to be tested and processes them. In the same way a sensor reads the deformation of the specimen when it is subjected to the pressing force and transmits the values it detects, which are stored on a USB key. This key, once the test is finished, must be inserted into a computer equipped with a special software (included). By means of this software the data are processed according to the formula of YOUNG and through this result you can build the graph related to the elasticity found of the tested tile, which will be stored later. With this instrument it is possible to determine the flexural strength, the breaking module, and the curvature arrow of the sample, operating according to the Standards: UNI EN ISO 10545-4
