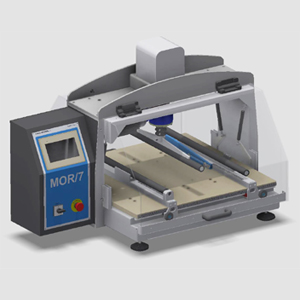

MACHINES FOR FLEXURAL BREAKING LOAD ANDMODULUS OF RUPTURE TESTS MOR/7-TS series
Indispensable for producers of ceramic floor and wall tiles when checking production processes and finished products.
Can also be used by producers of sanitaryware, tableware and technical porcelain; in research labs, in Technical and University labs, and wherever it is necessary to determine the flexural breaking load of a large number of different raw materials, broken down into sizes that can be positioned on the machines.
Standardized devices for determining the flexural breaking load and modulus of green or fired ceramic tiles without using any additional accessory.
According to the UNI EN ISO 10545-4
Technical Specifications
– Scale: 5+8000 N or 5+18000 N (according to the model)
– Minimum tile size 100×100 mm
– Supports for sample mounted on sliders and linear guides
– Front-rear-millimetric scale that allows a precise positioning of the supports
– Adjustable-rear limiters with millimetric scale for a central positioning of the sample – Breaking blade operated by an electro-mechanical system
– System for detecting applied load, by means of highly reliable strain gage cells
– Automatic testing cycle
– Automatic tareing
– Digital reading with wide touch screen display, in 5 languages
(I – GB – F – D – E)
– Selectable measuring unit in kg or Newton
– Automatic determination of the modulus of rupture in Newton/mm2 or kg/cm2 and the breaking effort in N or kg
– Possibility to re-enter the value of maximum thickness of the test after the trial for modulus of rupture re-calculation.
– 30 reference sizes that can be memorized
– Storage of the last 29 measures effected
– Descent velocity of the breaking blade adjustable by the control panel, with the possibility of setting up atomatically the standardized increase load
according to the UNI EN ISO 10545-4 standard.
– Fast approach and fast end of-test return.
– Openable methacrylate frontal and rear protections with safety microswitch
– Output: ethernet for connection to PC, printer or network
– Electric supply: 230 V single-phase 50/60 hz
