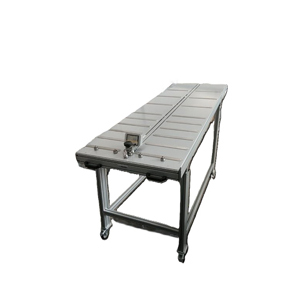

TILE CONTROL-M-CP
Tile-Control-M-P s a measuring instrument for manual sample quality control and enables dimensional
and flatness control of the tile from formati da 600×1200 mm to 1800×3600 mm
Measurement operations are simplified by the presence of a touch screen panel that guides the operator during measurement.
For the flatness control section, it is possible through a few simple parameters to divide the tile into a minimum of 25 sectors, up to a maximum of 81 sectors.
Technical specifications
- Sizes: 600×1200 mm / 1800×3600 mm
- Repeatability: +/- 0.05 mm
- Resolution: +/-0.05 mm
- HMI: 7″ 65 K colours
- Data sharing: Modbus – Excel
- Power supply: 230 Vac
